Frameless Shower Enclosure in Niche Opening, Port Coquitlam
Port Coquitlam, BC
Project Overview
Custom frameless shower glass enclosure fabricated and installed within a recessed niche opening in a Port Coquitlam new home build, completed with SM Caissie Construction.
The Challenge

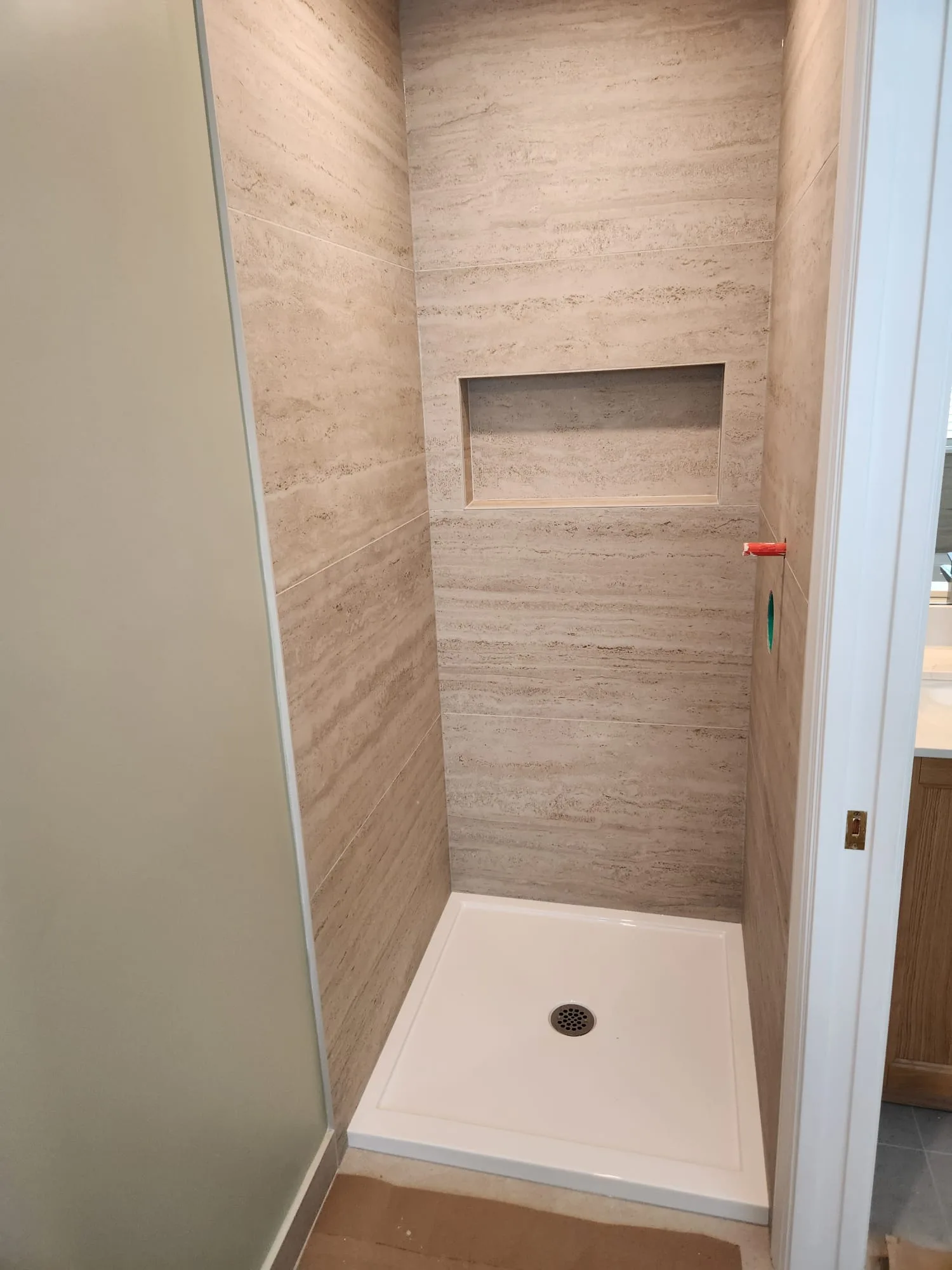

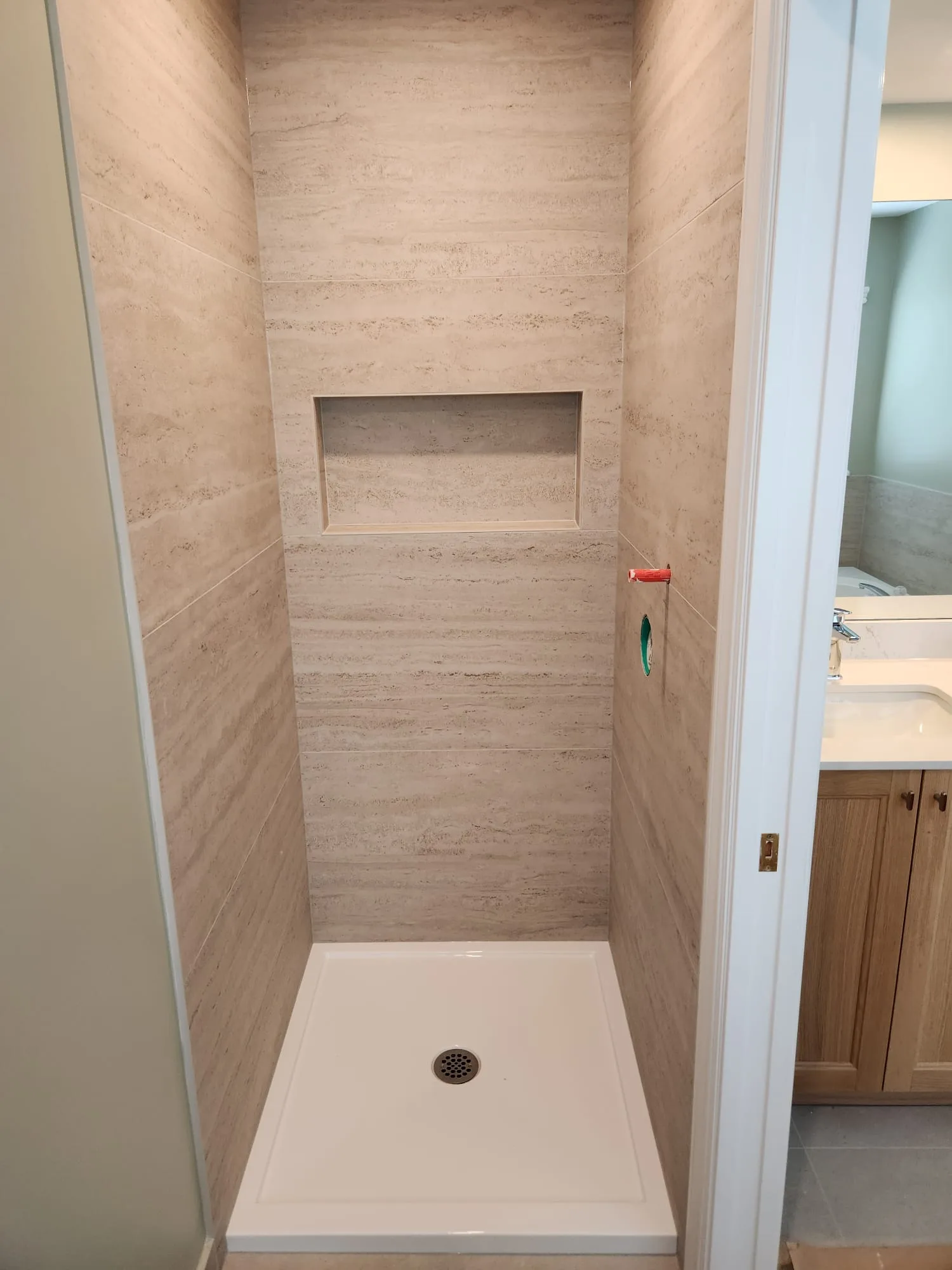

SM Caissie Construction builds high-quality residential homes in the Tri-Cities. This project required a frameless shower enclosure within a recessed tile niche — a configuration where the glass must be cut to fit precisely inside three finished tile walls with no exterior trim to conceal fit errors. The travertine-look tile work showed measurable wall angle variation at multiple heights, making a standard square cut unworkable.
Our Solution

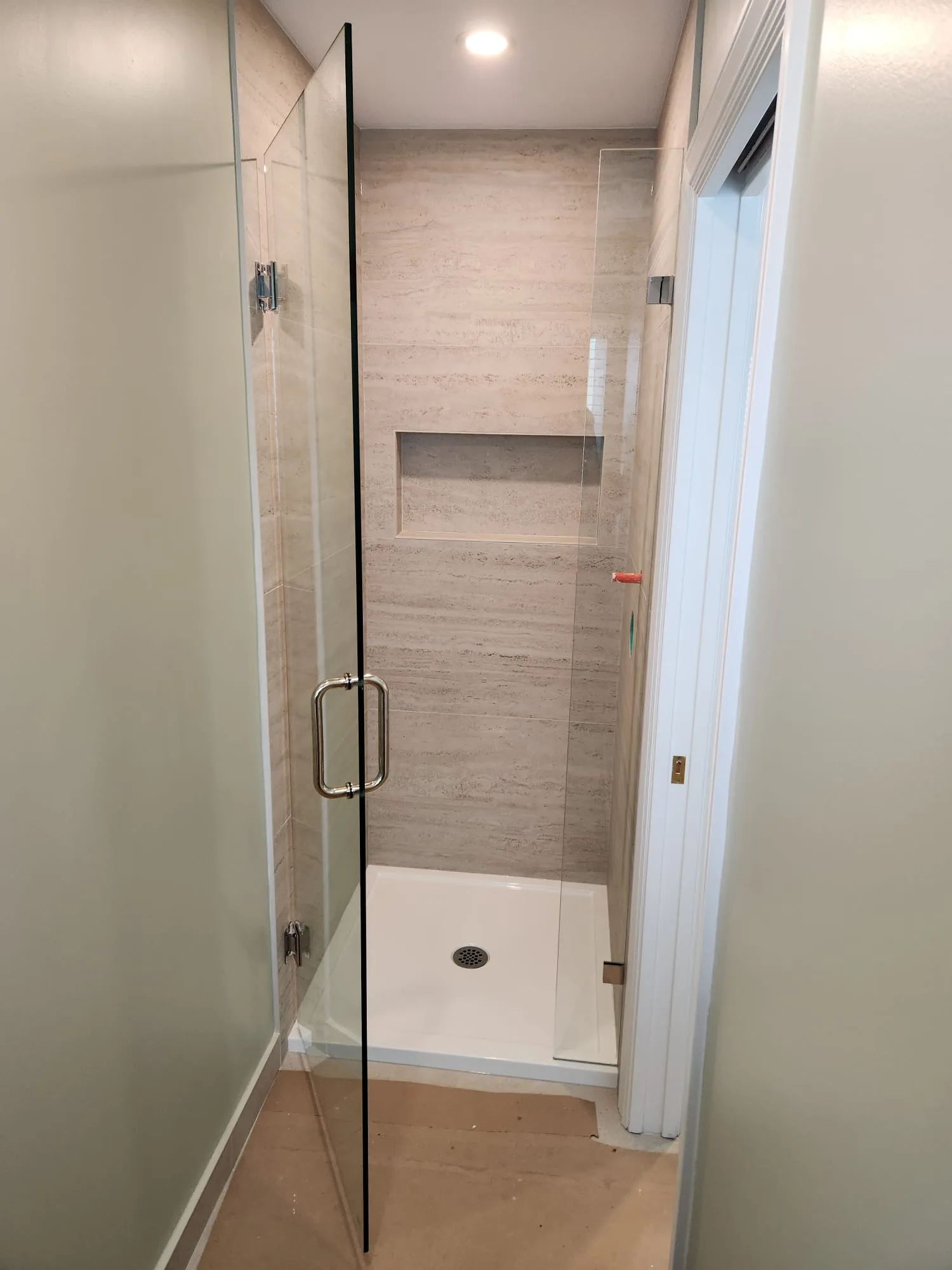

WaveGlass laser-templated all three interior wall surfaces of the niche opening, capturing exact widths at top, middle, and base to map the angle variation. The 10mm tempered panels were custom-cut with precision raked edges to absorb the wall inconsistency exactly. The glass was installed using minimal clear silicone, with polished chrome hinges and a matching pull handle aligned to the home's plumbing fixture selections.
The Result

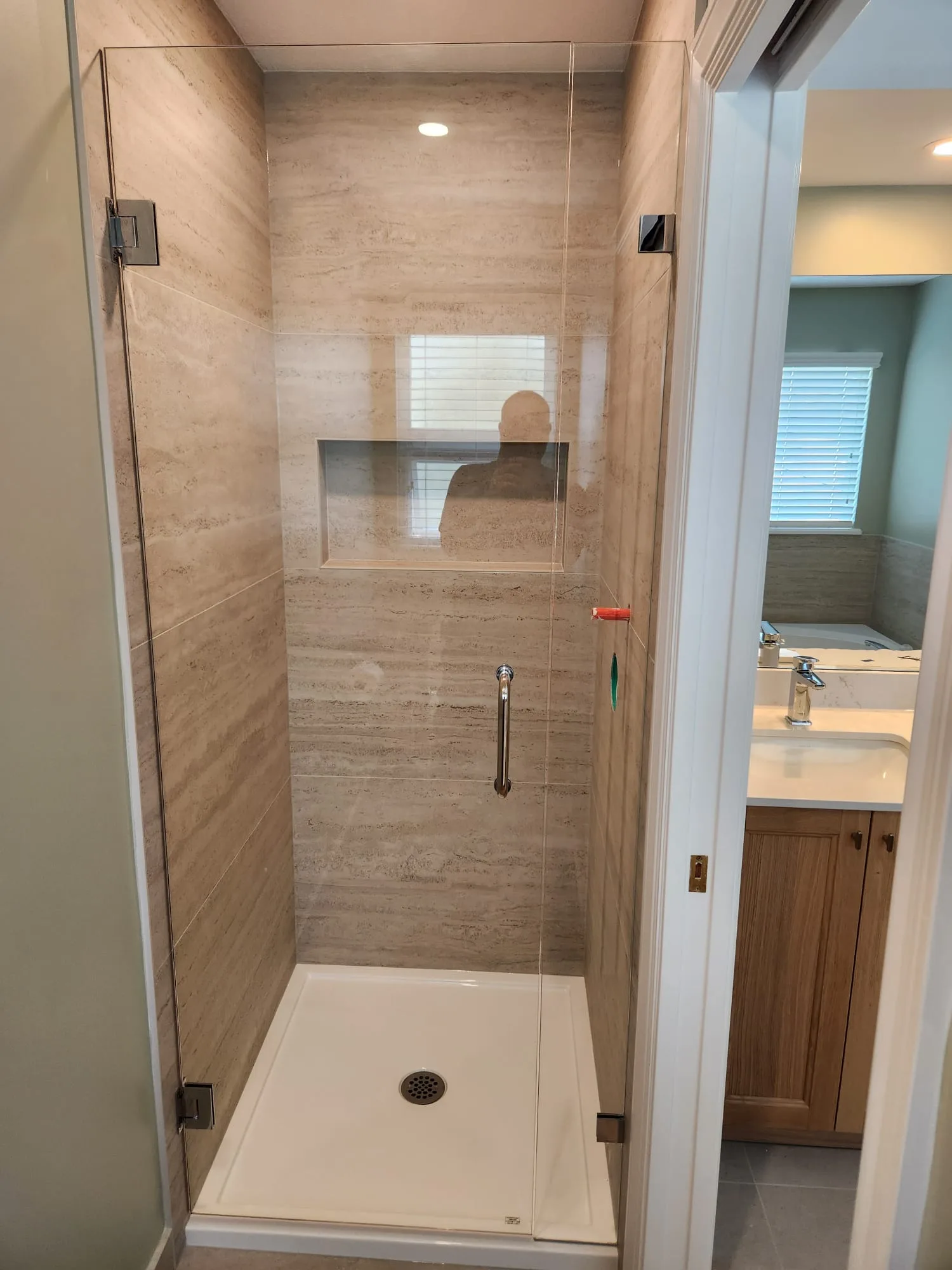

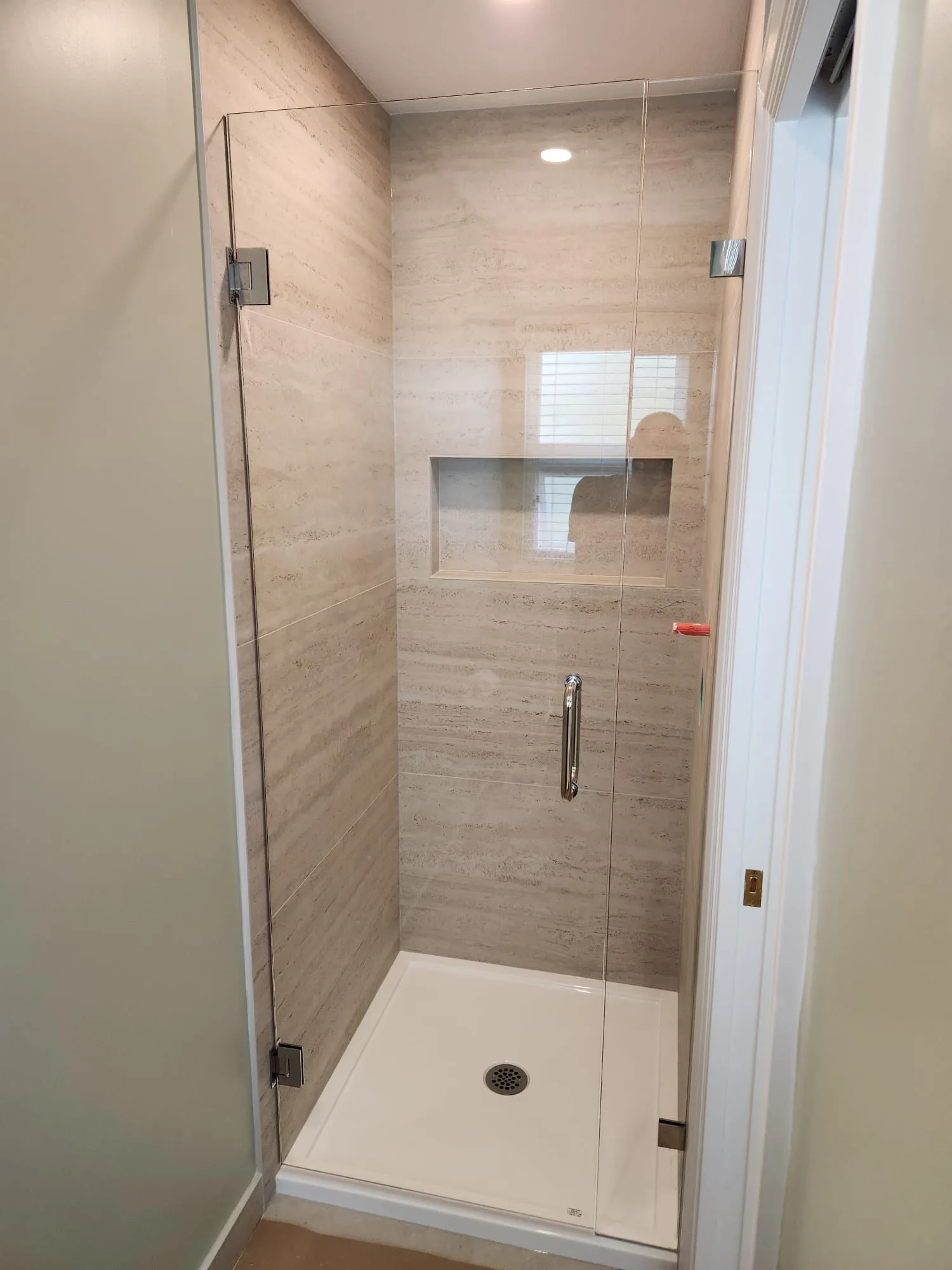

The enclosure sits flush within the niche with tight, even sightlines and a fully watertight silicone seal. SM Caissie Construction noted the precision of the templating process eliminated the rework they had experienced with other glazing suppliers. WaveGlass remains a preferred glazing trade for SM Caissie Construction on Tri-Cities new builds.
Key Features
- Recessed niche precision fit
- Raked edge cuts to match wall angles
- Polished chrome hardware
- Minimal silicone application
Project Photos
Ready for something similar?
If you're looking for premium residential glass solutions in Port Coquitlam or the surrounding Greater Vancouver area, our expert team at WaveGlass is ready to bring your vision to life with precision and care.
Project Details
Location
Port Coquitlam, BC
Glass Spec
10mm Clear Tempered
Hardware
Polished Chrome
Timeline
1 Day
